The Leaf Wetness Sensor is a Small circuit board this is mounted so it can be adjusted to different angles. The leaf wetness sensor is made up of two parts a Hobby board moisture circuit board And the leaf sensor







Solar Radiation

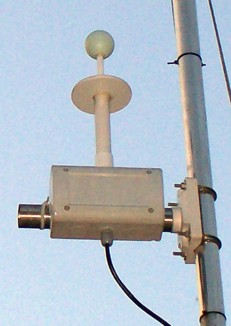

Solar radiation sensor, The Photodiode has been extended from the circuit board , and mounted in a table tennis ball this will protect the photodiode and allow enough light for the device to work the Ping Pong Ball is glued to a plastic tube ,  then mounted in to a waterproof box and sealed with sealant






Welcome to Weather-Above
Help Keep This Website Going! Please
Barometer
Hobby board barometer It reads pressure from 28-32 inHg (948-1083 mb). It's resolution is 0.01 inHg (0.34 mb).

Temp/Humidity

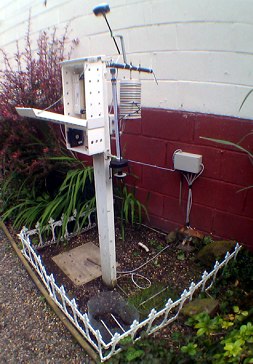

Instruments in the small Stevenson screen is a set of Sheathed ordinary Hygrometer . Met Office pattern (BS692). )  a standard minimum maximum temperature sensor, there is a small fan at the bottom this helps with air circulation











My first weather station was an Oregon scientific wireless model WMR928NX the manufacturers have stopped production on this model and now  offering a WMR200 - Next Generation Weather Station as a replacement, I decided to go for a Proffessional 1 wire weather station system.
The following sensors were supplied by Hobby Boards ( Power injector,solar radiation sensor, barometer, out door temperature/humidity, Leaf wet sensor, soil moisture module using a Watermark sensor (granular matrix sensor), concrete temperature sensor, soil temperature sensor@2 inches, rain gauge, snow sensor using a hobby board humidity module connected to a LV-MaxSonar®-EZ™ Sensor, Cloud sensor mod using a temperature sensor, Dual Counter mod rain switch connected to a Rain Tracker Rain Gage - Model RG-10, the wind instruments were supplied by Inspeed and connected to a hobby board Anemometer Controller Board, rain duration sensor is a humidity module which is connected to a sensing plate

There are several traditional instruments which we use for calibration purposes, we have lightning radar system which detects storms over Europe, we are also monitoring earthquakes around the world using a HS-3 SEISMOMETER, to keep our weather station time clock accurate we use a GPS system which synchronises the weather computer.



VORTEX WIND SENSOR Contests of a Inspeed E-VANE & Electronic Wind Direction Sensor these instruments are connected to a hobby board module these sensors are mounted on top of the house




Fig 1
Fig 2
Fig 3
Fig 4
Fig 5
Fig 6
Fig 7
Fig 8
Fig 9
Fig 11
Fig 12
Fig 10
Fig 13
Fig 14
Fig 11
Fig 7
Fig 8
Fig 9
Fig 10
Fig 14
Fig 13
Fig 4
Fig 5
Fig 6
Fig 12
Fig 1
Fig 2
Fig 3
Dry bulb
Wet bulb
Min & Max temperature

Fig 14
Fig 7
Fig 9

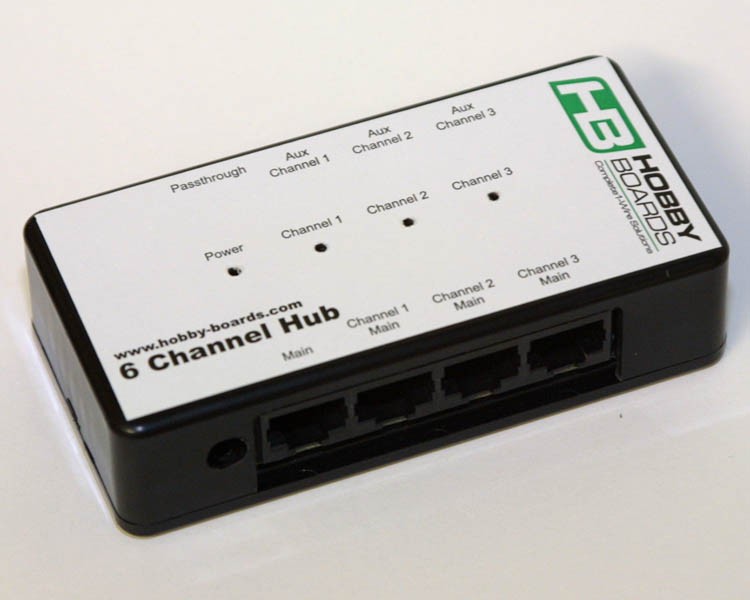

6 Channel Master Hub
Fig 12
Fig 15
Fig 15
Fig 6
Fig 10
Fig 10
Fig 17
Fig 17
Fig 14
Fig 14
Fig 16
Fig 18
Fig 20
Fig 20
Cloud sense
Instrument box
Air temperature / humidity

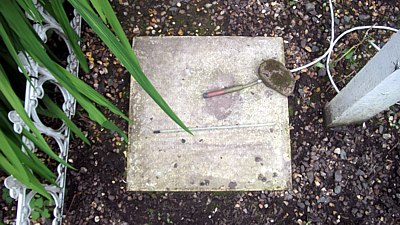

Concrete temperature
Soil temperature
Grass temperature
Wet leave sensor
Soil moisture sensor
Traditional Piche Evaporimeter
Sheathed Pattern Soil Thermometer
Angle Pattern Soil Thermometer
Sheathed Pattern Soil Thermometer

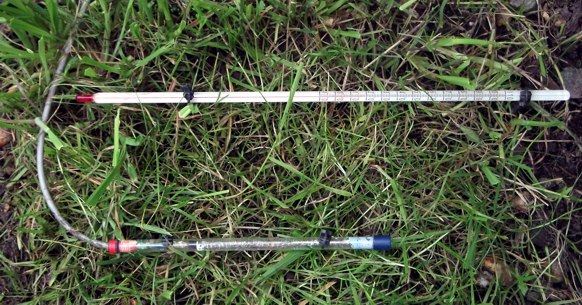

consists of a solid stem thermometer fitted into a transparent glass sheath. Each depth is established by inserting a steel tube into the ground, and lowering the thermometer by the chain down into the tube. The thermometer bulb is embedded in paraffin wax to give a slow response time enabling it to be withdrawn to take readings

28/07/2012
This instrument is not installed as we are waiting for a stainless steel Tube to be made




.
UV Sensor mounted in a waterproof box

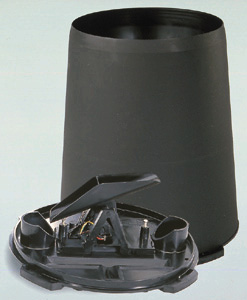

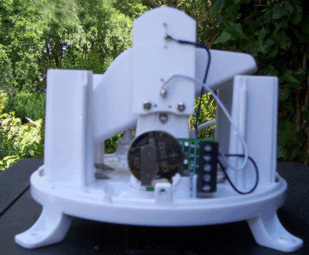

Rain gauge set to tip at  0.2mm this rain gauge is connected to a 1 wire counter,inside the rain gauge there is a heater and a thermostat which is designed to melt snow,
