Weather-Above Solar sensor

This is how I have mounted the 1 wire solar sensor

I first cut off the photodiode, that is on the hobby board circuit board please make a note of the polarity

you will see a small indicator on the diode please make sure this is wired exactly the same way

Solder two wires onto the photodiode thread the wires through a small white tube and then apply

some sealant in the top of the tube then push in firmly so you see the photodiode protruding above the tube

Make a small hole in a table tennis ball apply some sealant around the hole and push in the photodiode

which is housed in the small plastic tube

I decided to use a white circular disc in theory this should reflect the light when the sun is positioned

at a low angle I have drilled a hole and pushed in the small plastic tube into it

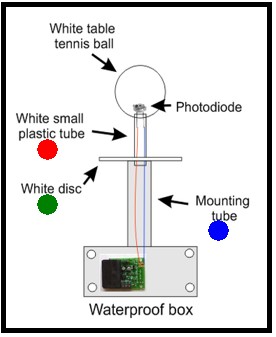

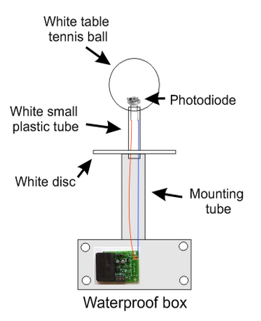

I then mounted another tube into the waterproof box , on top of this I have mounted the white circular disc

which has the photodiode tube mounted into the table tennis ball

The plastic tube to mount the photodiode was the body of a white plastic Biro pen

Circle was cut from some 5mm white plastic I had lying around in my garage

Tube coming from the box is standard electrical plastic conduit pipe
