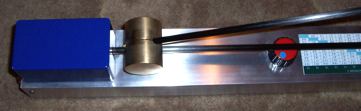

Blue protective cover, Brass proof mass

HS-3 SEISMOMETER
Sensor block

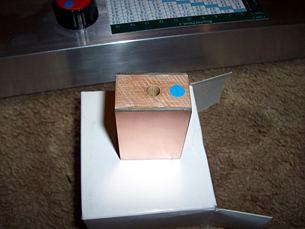

Capacitance plates

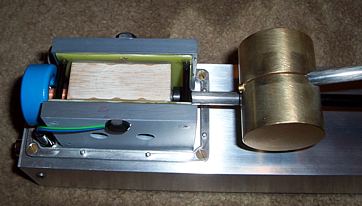

Feedback coil, Capacitance plates, Sensor block, Brass proof mass
Upper pendulum pivot

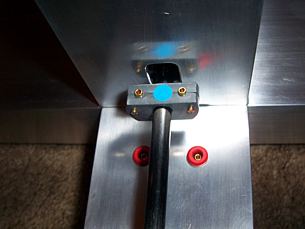

Feedback Wires
Carbon fibre
Technical Specification

Concept:     Carbon fibre, Lehman pendulum, with tungsten carbide roller pivots
Levelling:     Manual and remote electronic levelling. Bubble & electronic levels.
Sensor: Digital, symmetric, differential capacitance detector. Internally damped.
Natural period:     5-20s set by calibrated thumb screw.
Electronics:     Fully integrated.
Max. sensitivity:     1 count = 3nm/s (approx.)
Reading rate:     3/s, 6/s, 12/s and 24/s
Gain:     x1, x2, x4, x8, x16, x32
Dynamic range:     24 bit.
Feedback (tilt):     16 bit.
Temperature:     0.1°C resolution
Communications:     RS232 over 5m cable (supplied).
Dimensions:     H=346mm, L=780mm, W=520mm.
HS-3 SEISMOMETER
The draught proof box, was made with  50 mm thickness of Knauf Space board , I brought a pack which had {4} panels in it , Width ( 500 mm)  Length (1200 mm)  Thickness (52.5 mm)

Cut 2 boards in half  this should give you {4} panels  500mm x  600mm   { used 2 for the ends of the box)  and the other 2 are for making the top

Cut 2 boards  500mm x 1016 mm , then use the two leftover pieces to finish the top off

I used silicone sealant to join the panel together ,then reinforced using gaffer tape
